General computing, heterogeneous computing, collaborative computing, edge computing and other diversified product layout

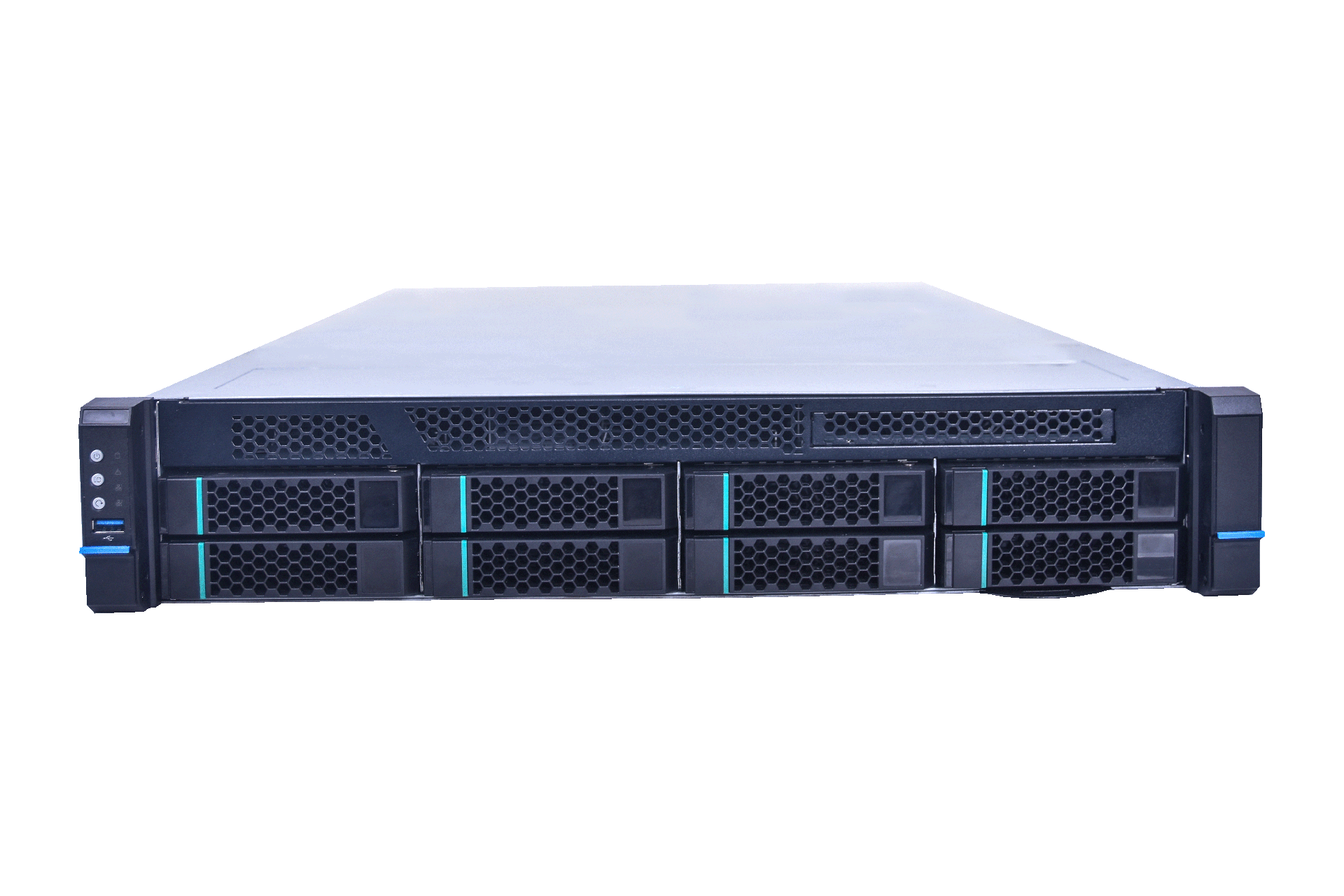

PowerLeader PR2510P2 is the latest 2U server launched by PowerLeader. It is designed with Intel® C620 Series Chipsets and offers the 2nd Generation Intel® Xeon® Scalable Processors. It supports up to 1TB of memory capacity, up to 8 x 3.5-inch or 2.5-inch hot-plug hard disks. And the PowerLeader PR2510P2 offers full-height PCIe expansion card slots.
The highly-integrated design brings excellent performance despite the limited space, which is enough to support the operation of key tasks. The PowerLeader PR2510P2 provides advanced management functions and storage technology, with reliable scalability and high availability.
PR2510P2 is suitable for mail serving,messaging, web searching and access to servers, as well as enterpriseinformation management.
Intelligent, large-scale virtualization and thenetwork node technology computing.
Optimizing the shape of the rack and 2U ishelpful for users to quickly deploy and efficiently maintain large-scalecluster.
Compared to the previous generation, the performanceof the PR2510P2 is improved by up to 140%, and the energy efficiency of it is increased greatly.
By improving security, eliminating I/O limits,optimizing density and performance, providing reliable virtual resources, andaddressing the storage challenges of data explosion, the PowerLeader PR2510P2provides the best and reliable solutions for private, public and hybrid clouds.
Supports up to 2 * 2nd Generation Intel® Xeon®Scalable Processors with 22 cores, which could provide powerful computing powerand meet the user's needs for larger computing.
Supports Intel Quick Assistant Technology(Intel® QAT) and Intel Advanced Vector Extensions 512 (Intel® AVX-512).
8 x memory channels, 8 x memory DIMM slots, andup to 1TB 2933MHz/DDR4.
M.2 and U.2 are fully supported, with fastertransmission speed, lower power consumption and higher reliability.
5 expansion slots, which provide users withflexible connection options.
There are two gigabit data network ports onboard, which are featured with load balancing, link convergence and supportingredundancy, which could effectively reduce network delay. And there is onededicated network port for remote management at 1000M.
Supports up to 8 x hot-plug 3.5-inch/2.5-inchSATA/SAS/SSD hard disks; optional: 2 x 2.5 -inch SATA/SAS/SSD (rear). (SASexpansion kit is required for selecting SAS hard disk)
SAS RAID5 is optionally supported to improvedata processing performance and protect data.
Adopts intelligent cooling system toeffectively reduce noise pollution and create a constant temperature space forthe chassis; fully shielded, anti-electromagnetic, anti-interference andanti-electro magnetic interference (EMI) design.
Supports Intel Quick Assistant Technology(Intel® QAT) to provide secure high performance and accelerated compression,and realize network, cloud service and storage functions to provide reliableprotection for virtual and cloud environments.
1+1 fully redundant power supply mode isoptionally supported, as well as those functions such as PMBUS powerconsumption monitoring and module loss alarm, thus keeping the operation of theserver more secure.
Supports frequency reduction, which couldreduce system energy consumption under low load.
According to the temperature of thermalcritical devices, the fan speed is adjusted comprehensively, which savesenergy, reduces noise and improves the reliability of the fan.
Supports PDCM v2.0 (energy efficiency manager)and provides automatic server power consumption control, which helps toaccomplish more tasks with less resources.
| Features | PR2510P2 Technical Specification |
|---|---|
| Form factor | 2U rack |
| Number of processors | 1 or 2 |
| Processors | 1 x 2nd Generation Intel® Xeon® Scalable Processor |
| Memory | 8 x DDR4 DIMM slots, supports RDIMM of 2933MHz, 1TB Max |
| Disk drives | Front: Up to 8 x 3.5-inch or 2.5-inch hot-plug SAS/SATA/SSD Internal: 1 x PCI-E M.2 SSD Rear: Up to 2 x 2.5-inch hot- plug SAS/SATA/SSD, or 2 x 2.5-inch U.2 SSD |
| Raid | Supports SATA RAID 0，1，10，5 Optional: supports SAS RAID 0, 10, 5, 50, 6, 60, etc., RAID(non-cache)/ 1GB/2GB(cache) Optional: power-down protection for cache data |
| Network Interface | Integrated 2 * gigabit GE ports; optional: external GE & 10 gigabit network cards or gigabit OCP module |
| PCIEexpansion | By default, provides 5 * PCI-E Gen3 slots and 1 * OCP Type A/C special slot. Slot 0: 1 x16 slot PCIe Gen3 for LP from CPU1 (default); Slot 1: 1 x16 slot PCIe Gen3 for LP from CPU1 (default); Slot 2: 1 x16 slot PCIe Gen3 for LP from CPU1 (default); supports PCI card with 1 x16 slot PCIe Gen3 for FH, double wide (optional) Slot 3: 1 x8 slot PCIe Gen3 for LP from CPU1 (default); this slot is not available while adding PCI card to slot 2; Slot 4: 1 x16 slot PCIe Gen3 for LP from CPU0 (default), supports PCI card with 1 x16 slot PCIe Gen3 for FH, double wide (optional) |
| Ports | Front Ports: 2 x USB 3.0 Rear Ports: 2 x USB 2.0 1 x VGA 1 x management network port Internal Ports: 1 x USB 3.0 |
| Fans | 3 x hot-plug fans |
| Power supplies | Standard:1 X 550 W Platinum power supply(AC); Supports 1 + 0 single power supply, or 1 + 1 redundant power supply; Optional: 550W/800W/1200W Platinum power module(AC) |
| Management | Supports IPMI2.0, provides 1100-Mbps or 1000-Mbps RJ45 management network port, and integrated iKVM, supports remote management |
| Display Controller | Integrated ASPEED AST2500 |
| CD-ROM/Drive | Optional: SATA/USB drives |
| Supported operating systems | Windows Server 2012 R2 Red Hat* Enterprise Advanced Server 7.5 |
| Power supplies | 220V AC /240V DC |
| Dimensions | Height–87 mm (3.4 inches) * Width–438 mm (17.24 inches) * Depth–660 mm (25.98 inches), support racks with 19 inch, minimum weight (with the standard configurations) is about 17kg (37.5 lb). |
| Environmental specifications | |
| Ambient Temperature: | 10–35°C (50–95°F) while operating; -40 - 55°C(-40 - 135°F) while in storage, according to the surroundings. |
| Relative humidity | 95% RH while in storage, non-condensing between 25 and 30°C |
| Acoustics | While operating, the sound pressure is less than50dBA in the lateral position; while idle, the sound intensity is 6.2BA at ambient temperature <28°C |
| Static electricity | Each Intel Environmental Temperature Test Specification is 15KV |
| Safety Standard(China) | CCC |
